Aquaculture Equipment

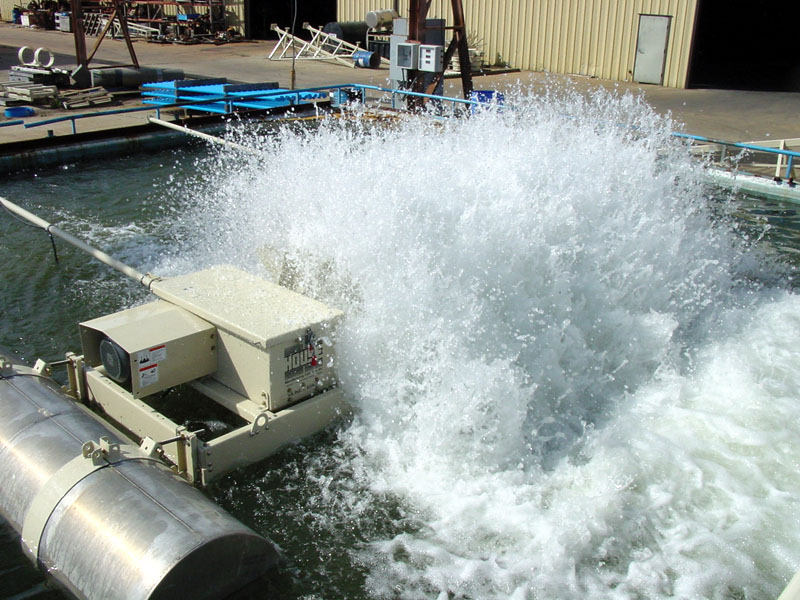

HCD Series-Chain Drive

Product Type:
Aquaculture Equipment

Certified oxygen transfer tests conclude that our 10HP HCD model is the best mixing and oxygen producing aerator of its kind on the market today. We can grow more fish per acre than other brands, which means more fish in your ponds and more money in your pocket. Because it’s been in production since 1990, we have found many ways to improve the performance and durability of our chain drive aerators. Our most recent innovations include the following:

  • 3" Schedule 40-Pipe Frame: the sturdiest frame in the industry.
  • Easy Access, Latch-Top/Hinged Drive Case: stainless steel latch top allows easier access for routine maintenance and general observation of the drive system.
  • Double 40-Chain Idler: idler allows for proper chain tension at all times during the start/stop of the aerator as well as continuous operation of the aerator, which increases the life of the chain and pillow block bearings.
  • Double-Seal Plate with Grease Fitting: lubricating between the seal surfaces once a year will help lengthen the life of the seals and ensure they stay resistant to corrosion.
  • Trunion Adjustment: fine-tune motor adjustment is made easier with the trunion system by setting for a light or full load in a matter of minutes.
  • Available from 2HP to 15HP with both single phase (up to 10HP) and three-phase motors.
  • Available in 2, 3, 5, 7.5, 10 & 15 HP
